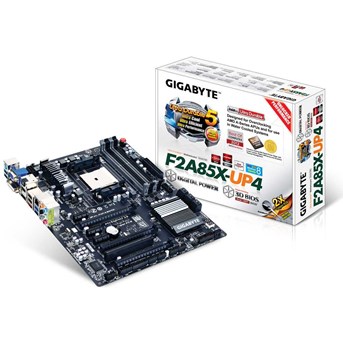

Gigabyte F2A85X-UP4

Spesifikasi APU FM2 Socket: 1. AMD A series processors 2. AMD Athlonâ „ ¢ series processors Chipset AMD A85X Memori 1. 4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory 2. Dual channel memory architecture 3. Support for DDR3 1866/ 1600/ 1333/ 1066 MHz memory modules 4. Support for AMD Memory Profile ( AMP) / Extreme Memory Profile ( XMP) memory modules Kartu Grafis Terintegrasi APU: 1. 1 x D-Sub port 2. 1 x DVI-D port, supporting a maximum resolution of 2560 x 1600 3. 1 x HDMI port, supporting a maximum resolution of 1920 x 1200 4. 1 x DisplayPort, supporting a maximum resolution of 2560 x 1600 ( The DisplayPort port does not support Hot plug. If you want to change to another graphics port when the computer is on, be sure to turn off the computer first.) Audio 1. Realtek ALC892 codec 2. High Definition Audio 3. 2/ 4/ 5.1/ 7.1-channel 4. Support for S/ PDIF Out LAN 1. Realtek GbE LAN chip ( 10/ 100/ 1000 Mbit) Slot Tambahan 1. 1 x PCI Express x16 slot, running at x16 ( PCIEX16) 2. 1 x PCI Express x16 slot, running at x8 ( PCIEX8) 3. 1 x PCI Express x16 slot, running at x4 ( PCIEX4) 4. 3 x PCI Express x1 slots ( All PCI Express slots conform to PCI Express 2.0 standard) 5. 1 x PCI slot Teknologi Multi Grafis 1. Support for AMD CrossFireâ „ ¢ technology 2. Support for AMD Dual Graphics technology Antarmuka Penyimpanan Chipset: 1. 7 x SATA 6Gb/ s connectors ( SATA3 0~ 6) supporting up to 7 SATA 6Gb/ s devices 2. 1 x eSATA 6Gb/ s connector on the back panel supporting up to 1 SATA 6Gb/ s device 3. Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD USB Chipset: 1. Up to 4 USB 3.0/ 2.0 ports ( 2 ports on the back panel, 2 ports available through the internal USB header) 2. Up to 10 USB 2.0/ 1.1 ports ( 2 ports on the back panel, 8 ports available through the internal USB header) Etron EJ168 chip: 1. Up to 2 USB 3.0/ 2.0 ports on the back panel Konektor I/ O Internal 1. 1 x 24-pin ATX main power connector 2. 1 x 8-pin ATX 12V power connector 3. 7 x SATA 6Gb/ s connectors 4. 1 x APU fan header 5. 4 x system fan headers 6. 1 x front panel header 7. 1 x front panel audio header 8. 1 x S/ PDIF Out header 9. 1 x USB 3.0/ 2.0 header 10. 4 x USB 2.0/ 1.1 headers 11. 1 x serial port header 12. 1 x Clear CMOS jumper 13. 1 x Trusted Platform Module ( TPM) header 14. 1 x Power button 15. 1 x reset button 16. 1 x Clear CMOS button Konektor Panel Belakang 1. 1 x PS/ 2 keyboard/ mouse port 2. 1 x D-Sub port 3. 1 x DVI-D port 4. 1 x optical S/ PDIF Out Connector 5. 1x USB HDMI port 6. 1 x DisplayPort 7. 4 x USB 3.0/ 2.0 ports 8. 2 x USB 2.0/ 1.1 ports 9. 1 x eSATA 6Gb/ s connector 10. 1 x RJ-45 port 11. 6 x audio jacks ( Center/ Subwoofer Speaker Out/ Rear Speaker Out/ Side Speaker Out/ Line In/ Line Out/ Microphone) Pengontrol I/ O 1. iTE I/ O Controller Chip Pengawasan Hardware 1. System voltage detection 2. APU/ System temperature detecion 3. APU/ System fan speed detection 4. APU overheating warning 5. APU/ System fan fail warning 6. APU/ System fan speed control BIOS 1. 2 x 64 Mbit flash 2. Use of licensed AMI EFI BIOS 3. Support for DualBIOSâ „ ¢ 4. PnP 1.0a, DMI2.0, SM BIOS 2.6, ACPI 2.0a Fitur Unik 1. Support for @ BIOS 2. Support for Q-Flash 3. Support for Xpress Install 4. Support for EasyTune 5. Support for Smart Recovery 2 6. Support for Auto Green 7. Support for ON/ OFF Charge 8. Support for 3TB + Unlock 9. Support for Q-Share Paket Software 1. Norton Internet Security ( OEM Version) 2. LucidLogix Virtu MVP Sistem Operasi 1. Support for microsoft ® windows 8/ 7/ Vista/ XP Form Factor 1. ATX Form Factor; 30.5cm x 24.4cm Keterangan 1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website 2. Most hardware/ software vendors may no longer offer drivers to support Win9X/ ME/ 2000/ XP SP1/ SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website
