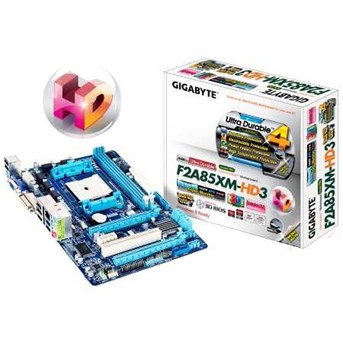

Gigabyte F2A85XM-HD3

Spesifikasi APU FM2 Socket: 1. AMD A series processors 2. AMD Athlonâ „ ¢ series processors Chipset AMD A85X Memori 1. 2 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory 2. Dual channel memory architecture 3. Support for DDR3 1866/ 1600/ 1333/ 1066 MHz memory modules 4. Support for AMD Memory Profile ( AMP) / Extreme Memory Profile ( XMP) memory modules Kartu Grafis Terintegrasi 1. 1 x D-Sub port 2. 1 x DVI-D port, supporting a maximum resolution of 2560 x 1600 3. 1 x HDMI port, supporting a maximum resolution of 1920 x 1200 Audio 1. Realtek ALC887 codec 2. High Definition Audio 3. 2/ 4/ 5.1/ 7.1-channel 4. Support for S/ PDIF Out LAN 1. Realtek GbE LAN chip ( 10/ 100/ 1000 Mbit) Slot Tambahan 1. 1 x PCI Express x16 slot, running at x16 ( PCIEX16) 2. 1 x PCI Express x16 slot, running at x4 ( PCIEX4) 3. 1 x PCI Express x1 slot ( All PCI EXpress slots conform to PCI Express 2.0 standard) 4. 1 x PCI slot Teknologi Multi Grafis 1. Support for AMD CrossFireâ „ ¢ technology 2. Support for AMD Dual Graphics technology Antarmuka Penyimpanan Chipset: 1. 8 x SATA 6Gb/ s connectors supporting up to 8 SATA 6Gb/ s devices 2. Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD USB Chipset: 1. Up to 4 USB 3.0/ 2.0 ports ( 2 ports on the back panel, 2 ports available through the internal USB header) 2. Up to 8 USB 2.0/ 1.1 ports ( 4 ports on the back panel, 4 ports available through the internal USB header) Konektor I/ O Internal 1. 1 x 24-pin ATX main power connector 2. 1 x 8-pin ATX 12V power connector 3. 8 x SATA 6Gb/ s connectors 4. 1 x APU fan header 5. 1 x system fan header 6. 1 x front panel header 7. 1 x front panel audio header 8. 1 x S/ PDIF Out header 9. 1 x USB 3.0/ 2.0 header 10. 2 x USB 2.0/ 1.1 headers 11. 1 x serial port header 12. 1 x parallel port header 13. 1 x Clear CMOS jumper 14. 1 x chassis intrusion header Konektor Panel Belakang 1. 1 x PS/ 2 keyboard/ mouse port 2. 1 x D-Sub port 3. 1 x DVI-D port 4. 1 x HDMI port 5. 2x USB 3.0/ 2.0 ports 6. 4 x USB 2.0/ 1.1 ports 7. 1 x RJ-45 port 8. 3 x audio jacks ( Line In/ Line Out/ Microphone) Pengontrol I/ O 1. iTE I/ O Controller Chip Pengawasan Hardware 1. System voltage detection 2. APU/ System temperature detecion 3. APU/ System fan speed detection 4. APU overheating warning 5. APU/ System fan fail warning 6. APU/ System fan speed control BIOS 1. 2 x 64 Mbit flash 2. Use of licensed AMI EFI BIOS 3. Support for DualBIOSâ „ ¢ 4. PnP 1.0a, DMI2.0, SM BIOS 2.6, ACPI 2.0a Fitur Unik 1. Support for @ BIOS 2. Support for Q-Flash 3. Support for Xpress Install 4. Support for EasyTune 5. Support for Smart Recovery 2 6. Support for Auto Green 7. Support for ON/ OFF Charge 8. Support for 3TB + Unlock 9. Support for Q-Share Paket Software 1. Norton Internet Security ( OEM Version) Sistem Operasi 1. Support for microsoft ® windows 8/ 7/ Vista/ XP Form Factor 1. Micro ATX Form Factor; 24.4cm x 17.4cm Keterangan 1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website 2. Most hardware/ software vendors may no longer offer drivers to support Win9X/ ME/ 2000/ XP SP1/ SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website
