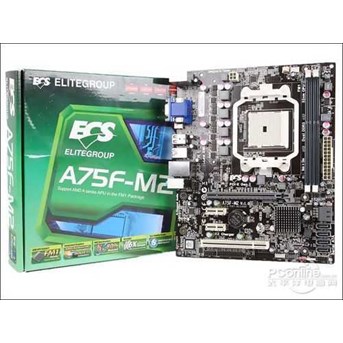

ECS A75F-M2

Spesifikasi CPU Socket Socket FM1 Supported CPU AMD A series/ E Series/ Althon Quard-core/ Athlon Dual-core/ Sempron Dual-core processors ( TDP max 100W) Northbridge Chipset AMD A75 FCH DIMM Sockets 2 x 240-pin DDR3 DIMM socket Supported Memory Support Dual-channel DDR3 1333/ 1600/ 1866* memory architecture Max. Memory up to 32GB ( per one DIMM support 16GB) Expansion Slots * 1 x PCI Express x16 slot * 2 x PCI Express x1 slot * 1 x PCI slot Serial ATA Controller 6 x Serial ATA 6.0Gb/ s devices Supported RAID RAID0, RAID1, RAID10 configuration Audio Realtek ALC662 6-channel audio LAN Realtek 8111E Gigabit LAN Fast Ethernet Controller USB * 6 x USB 2.0 ports * 2 x USB 3.0 ports compatible to both USB 3.0/ 2.0 devices ( blue) BIOS AMI BIOS with 16Mb SPI Flash ROM Internal I/ O * 1 x 24-pin ATX Power Supply connector * 1 x 4-pin ATX 12V connector * 1 x 4-pin CPU_ FAN connectors * 1 x 3-pin SYS_ FAN connector * 2 x USB 2.0 headers support additional 4 USB 2.0 Ports * 1 x USB 3.0 header supports additional 2 USB 3.0 Ports * 6 x Serial ATA 6Gb/ s connectors * 1 x COM header * 1 x LPT header * 1 x Front panel audio header * 1 x Case Open header * 1 x Speaker header * 1 x Clear CMOS header * 1 x SPDIF out header External I/ O * 6 x USB 2.0 ports * 2 x USB 3.0 ports compatible to both USB 3.0/ 2.0 devices ( blue) * 1 x PS/ 2 keyboard & PS/ 2 mouse connectors * 1 x DVI connector( optional) * 1 x HDMI Port * 1 x D-sub( VGA) * 1 x RJ45 LAN connector * 1 x Audio port Form Factor Micro_ ATX Dimensi 244 x 200 mm
