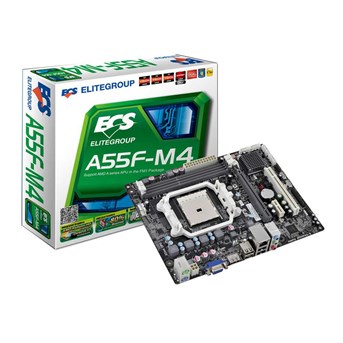

ECS A55F-M4

Spesifikasi CPU * Socket FM1 for AMD A series processors * Note: This board supports CPU up to 100W TDP; you can refer to AMD website to check your CPU CHIPSET AMD A55 FCH MEMORY * Dual-channel DDR3 1333/ 1600/ 1866* memory architecture* * 2 x 240-pin DDR3 DIMM socket support up to 16GB per one DIMM support 8GB * Duo to limitation of AMD chipset spec, it supports up to 1866 MHz for motherboards with a single DIMM per channel Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ® 32-bit OS. For Windows ® 64-bit OS with 64-bit CPU, there is no such limitation EXPANSION SLOT * 1 x PCI Express x16 slot * 1 x PCI Express x1 slot * 1 x PCI slot STORAGE Support by AMD A55 * 4 x Serial ATA 3.0Gb/ s devices * RAID0, RAID1, RAID10 configuration AUDIO * VIA ® VT1705 6-channel High Definition audio CODEC * Compliant with HD audio specification LAN Atheros AR8151 GIGA LAN REAR PANEL I/ O * 4 x USB 2.0 Ports * 1 x PS/ 2 keyboard & PS/ 2 mouse connectors * 1 x D-sub( VGA) * 1 x HDMI Port( Optional) * 1 x RJ45 LAN connector * 1 x Audio port INTERNAL I/ O CONNECTORS & HEADERS * 1 x 24-pin ATX Power Supply connector * 1 x 4-pin ATX Power Supply Connector * 1 x 4-pin CPU_ FAN connector * 1 x 3-pin SYS_ FAN connector * 2 x USB 2.0 headers support additional 4 USB 2.0 Ports * 4 x Serial ATA 3Gb/ s connectors * 1 x COM header * 1 x LPT header * 1 x Front panel audio header * 1 x Case Open header * 1 x Speaker header * 1 x Clear CMOS header * 1 x SPDIF out header SYSTEM BIOS * AMI BIOS 16Mb SPI Flash ROM * Supports Multi-language BIOS * Supports ECS M.I.B III Utility * Supports eBLU * Supports eDLU FORM FACTOR Micro-ATX Size, 230mm* 180mm
