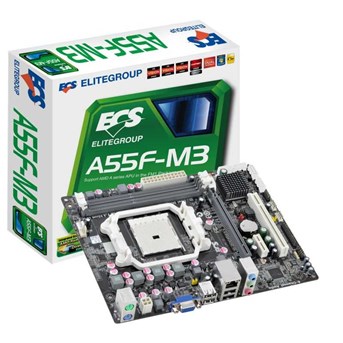

ECS A55F-M3

Spesifikasi CPU Socket Socket FM1 Supported CPU AMD A series/ E Series/ Althon Quard-core/ Althon Dual-core/ Sempron Dual-core processors ( TDP max 100W) Northbridge Chipset AMD A55 FCH DIMM Sockets 2 x 240-pin DDR3 DIMM Supported Memory Support Dual-channel DDR3 1333/ 1600/ 1866* memory architecture Max. Memory 16GB Expansion Slots * 1 x PCI Express x16 slot * 1 x PCI Express x1 slot * 1 x PCI slot Serial ATA Controller 4 x Serial ATA 3.0Gb/ s devices Supported RAID RAID0, RAID1, RAID10 configuration Audio VIAÂ ® VT1705 6-channel audio CODEC LAN Realtek 8111E Gigabit LAN Fast Ethernet Controller USB 4 x USB 2.0 Ports BIOS AMI BIOS with 16Mb SPI Flash ROM Internal I/ O * 1 x 24-pin ATX Power Supply connector * 1 x 4-pin ATX 12V connector * 1 x 4-pin CPU_ FAN connector * 2 x USB 2.0 headers support additional 4 USB 2.0 Ports * 1 x 3-pin SYS_ FAN connector * 4 x SATA 3Gb/ s connectors * 1 x COM header * 1 x LPT header * 1 x Front panel audio header * 1 x Case Open header * 1 x Speaker header * 1 x Clear CMOS header * 1 x SPDIF out header External I/ O * 4 x USB 2.0 Ports * 1 x PS/ 2 Keyboard & PS/ 2 mouse connectors * 1 x D-sub ( VGA) * 1 x RJ45 LAN connector * 1 x Audio port ( Line-in, Line-out, Mic-in) Form Factor Micro_ ATX Dimensi 230 x 180 mm
