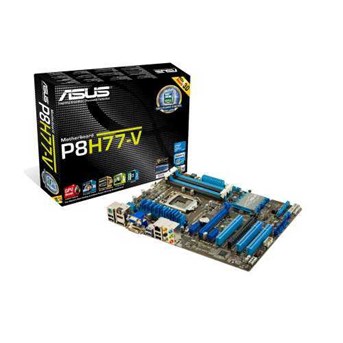

Asus P8H77-V

Spesifikasi Supported CPU Intel® Socket 1155 Northbridge Chipset Intel® Socket 1155 for 3rd/ 2nd Generation Processors Southbridge Chipset Intel® H77 Supported Memory 4 x DIMM Max. Memory 32 GB, DDR3 MHz Non-ECC, Un-buffered Memory, Supports Intel® Extreme Memory Profile ( XMP) Expansion Slots 1 x PCIe 3.0/ 2.0 x16 ( blue) 1 x PCIe 2.0 x16 ( x4 mode, black) * 2 2 x PCIe 2.0 x1 3 x PCI Other Storage Controller 2 x SATA 6Gb/ s port( s) , gray 4 x SATA 3Gb/ s port( s) , blue Onboard VGA Raid 0, 1, 5, 10 LAN Qualcomm Atheros, 1 x Gigabit LAN Controller( s) Audio IA VT1708S 8-Channel High Definition Audio CODEC Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Display Output 4 x USB 3.0 port( s) ( 2 at back panel, blue, 2 at mid-board) 10 x USB 2.0 port( s) ( 4 at back panel, black, 6 at mid-board) BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function Internal I/ O 1 x USB 3.0 connector( s) support( s) additional 2 USB 3.0 port( s) 3 x USB 2.0 connector( s) support( s) additional 6 USB 2.0 port( s) 1 x COM port( s) connector( s) 2 x SATA 6Gb/ s connector( s) 4 x SATA 3Gb/ s connector( s) 1 x CPU Fan connector( s) 2 x Chassis Fan connector( s) 1 x Power Fan connector( s) 1 x S/ PDIF out header( s) 1 x 24-pin EATX Power connector( s) v 1 x 8-pin ATX 12V Power connector( s) 1 x Front panel audio connector( s) ( AAFP) 1 x System panel( s) 1 x MemOK! button( s) 1 x GPU Boost switch( es) 1 x Clear CMOS jumper( s) External I/ O 1 x PS/ 2 keyboard/ mouse combo port( s) 1 x DVI 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN ( RJ45) port( s) 2 x USB 3.0 4 x USB 2.0 1 x Optical S/ PDIF out 6 x Audio jack( s Form Factor ATX Form Factor Dimension 12 inch x 8.9 inch ( 30.5 cm x 22.6 cm )
