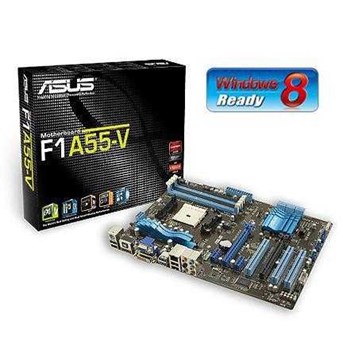

Asus F1A55-V

Spesifikasi CPU AMD Socket FM1 A- Series/ E2- Series Accelerated Processors Supports CPU up to 4 cores Supports AMDï ¿ ½ ï ¿ ½ Turbo Core 2.0 Technology * The AMDï ¿ ½ ï ¿ ½ Turbo Core 2.0 Technology Support depends on the APU types Chipset AMD A55 FCH ( Hudson D2) Memory 4 x DIMM, Max. 64GB, DDR3 2250( O.C.) / 1866/ 1600/ 1333/ 1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * The Max. 64GB memory capacity can be supported with DIMMs of 16GB ( or above) . ASUS will update QVL once the DIMMs are available on the market. * Refer to www.asus.com or user manual for the Memory QVL ( Qualified Vendors Lists) * Due to OS limitation, when installing total memory of 4GB capacity or more, Windowsï ¿ ½ ï ¿ ½ 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windowsï ¿ ½ ï ¿ ½ OS when you want to install 4GB or more memory on the motherboard Graphic Integrated AMD Radeonï ¿ ½ ï ¿ ½ ï ¿ ½ HD 6000 Series Graphics in Llano APU Multi-VGA output support : HDMI/ DVI/ RGB ports * 1 - Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1600 @ 60 Hz AMDï ¿ ½ ï ¿ ½ Dual Graphics technology support * 2 Supports DirectX 11 Multi-GPU Support Supports AMD CrossFireXï ¿ ½ ï ¿ ½ ï ¿ ½ Technology Expansion Slots 1 x PCIe 2.0 x16 ( blue) 1 x PCIe 2.0 x16 ( x4 mode, black) 2 x PCIe 2.0 x1 3 x PCI Storage AMD A55 FCH ( Hudson D2) chipset : 6 x SATA 3Gb/ s port( s) , blue Support Raid 0, 1, 10, JBOD LAN Realtekï ¿ ½ ï ¿ ½ , 1 x Gigabit LAN Controller( s) Audio Realtekï ¿ ½ ï ¿ ½ ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Optical S/ PDIF out port( s) at back panel USB Ports * AMD A55 FCH ( Hudson D2) chipset : 10 x USB 2.0 port( s) ( 4 at back panel, black, 6 at mid-board) ASMediaï ¿ ½ ï ¿ ½ USB 3.0 controller : 2 x USB 3.0 port( s) ( 2 at back panel, blue) Overclocking Features Overclocking Protection : - ASUS C.P.R.( CPU Parameter Recall) Special Features ASUS EPU: - EPU TurboV ASUS Exclusive Features: - MemOK! - Al Suite II - Ai Charger+ - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS 100% All High-quality Conductive Polymer Capacitors Back I/ O Ports 1 x PS/ 2 keyboard/ mouse combo port( s) 1 x DVI-D 1 x D-sub 1 x HDMI 1 x LAN ( RJ45) port( s) 2 x USB 3.0 4 x USB 2.0 1 x Optical S/ PDIF out 6 x Audio jack( s) Internal I/ O Ports 3 x USB 2.0 connector( s) support( s) additional 6 USB 2.0 port( s) 1 x COM port( s) connector( s) 6 x SATA 3Gb/ s connector( s) 1 x CPU Fan connector( s) ( 4 -pin) 2 x Chassis Fan connector( s) ( 4 -pin) 1 x Power Fan connector( s) ( 3 -pin) 1 x S/ PDIF out header( s) 1 x 24-pin EATX Power connector( s) 1 x 8-pin ATX 12V Power connector( s) 1 x Front panel audio connector( s) ( AAFP) 1 x System panel( s) 1 x MemOK! button( s) Accessories User' s manual I/ O Shield 2 x SATA 3Gb/ s cable( s) BIOS 32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a Support Disc Drivers ASUS utilities ASUS Update Anti-virus software ( OEM version) Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note * 1: HDMI and DVI-D cannot work simultaneously. * 2: Refer to www.amd.com for the discrete GPUs which support Dual Graphics technology
