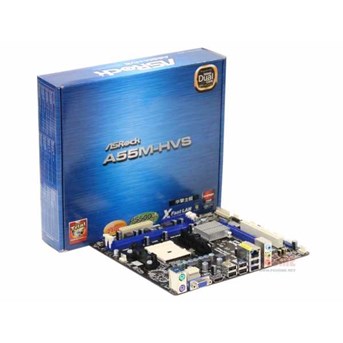

Asrock A55M-HVS

Spesifikasi CPU Socket Socket FM1 Supported CPU Support for Socket FM1 100W processors ( TDP max 100W) Northbridge Chipset AMD A55 FCH ( Hudson-D2) DIMM Sockets 2 x DDR3 DIMM slots Supported Memory Supports DDR3 2400+ ( OC) / 1866/ 1600/ 1333/ 1066/ 800 non-ECC, un-buffered memory Max. Memory 16GB* * * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ® 32-bit OS. For Windows ® 64-bit OS with 64-bit CPU, there is no such limitation Expansion Slots * 1 x PCI Express 2.0 x16 slot * 1 x PCI Express 2.0 x1 slot * 1 x PCI slot Serial ATA Controller 6 x SATA2 3.0 Gb/ s connectors Supported RAID RAID ( RAID 0, RAID 1 and RAID 10) Audio 5.1 CH HD Audio ( VIA ® VT1705 Audio Codec) LAN PCIE x1 Gigabit LAN 10/ 100/ 1000 Mb/ s USB 3 x USB 2.0 headers ( support 6 USB 2.0 ports) BIOS 32Mb AMI UEFI Legal BIOS with GUI support Internal I/ O * 6 x SATA2 3.0 Gb/ s connectors, support RAID ( RAID 0, RAID 1 and RAID 10) , NCQ, AHCI and " Hot Plug" functions * 1 x IR header * 1 x CIR header * 1 x Print port header * 1 x COM port header * CPU/ Chassis/ Power FAN connector * 24 pin ATX power connector * Front panel audio connector * 8 pin 12V power connector * 3 x USB 2.0 headers ( support 6 USB 2.0 ports) External I/ O * 1 x PS/ 2 Mouse Port * 1 x PS/ 2 Keyboard port * 1 x D-Sub Port * 1 x HDMI port * 6 x Ready-to0use USB 2.0 Ports * 1 x RJ-45 LAN Port with LED ( ACT/ LINK LED and SPEED LED) * HD Audio Jack : Line in/ Front Speaker/ Microphone Form Factor Micro ATX Dimensi 8.9 x 8.5 inch, 22.6 x 21.6 cm
